Brynmenyn Weir Refurbishment

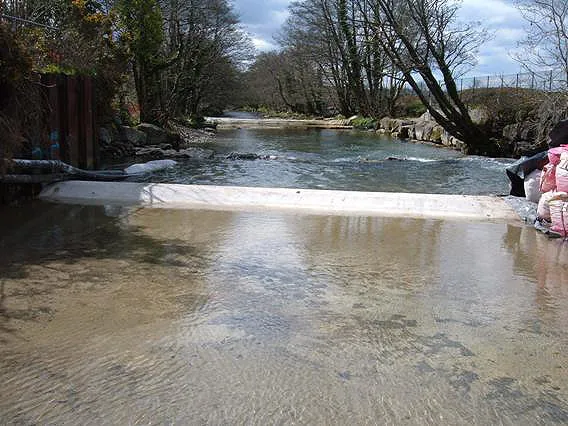

Scheme was part of the 'Salmon for tomorrow fish passage' works and consisted of refurbishing the existing Brynmenyn Weir.
McCarthy's Role
Main contractor on site carrying out/completing all physical works as per the construction details:

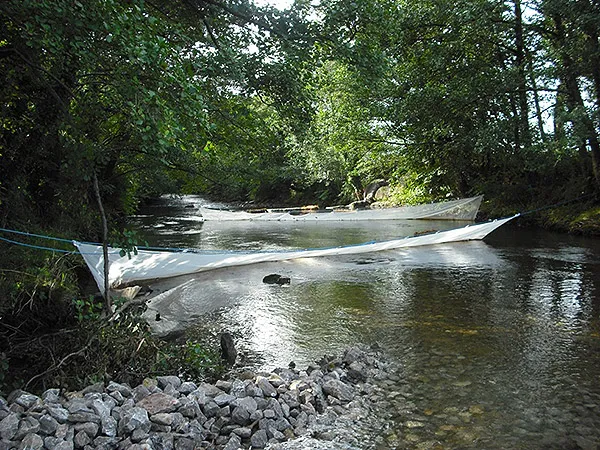

- Install anti siltation measure's downstream of the proposed works

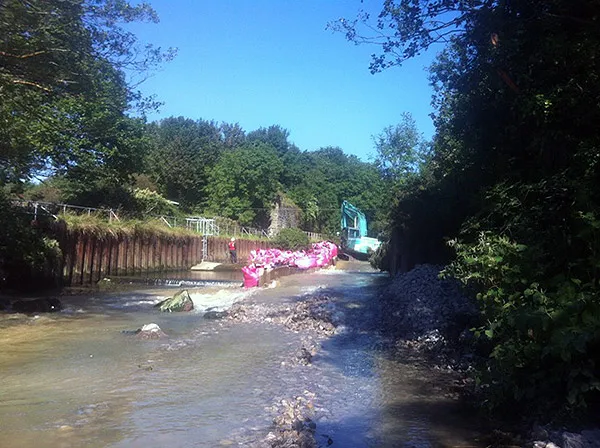

- Construct rip rap causeway in river to access weir.

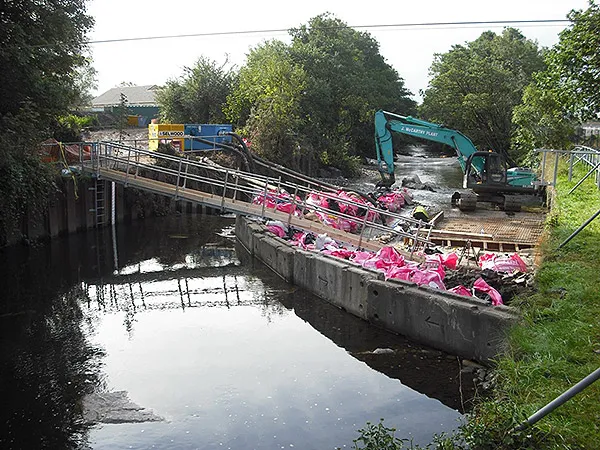

- Divert river on to one half of its width, this was achieved through the use of 1 tonne sand bags, polythene and precast concrete road barriers. The arrangement would require to be switched over when one half of the weir was completed
- Scabble down the existing concrete weir structure, to provide enough depth for the new arrangement to be cast on top
- The design incorporated the provision of large blockstone or the placement of stone revetment that is sized and designed to dissipate wave energy.
- Remove existing weir plate and affix new plate
- Complete all mesh and bent bar reinforcement including dowelling

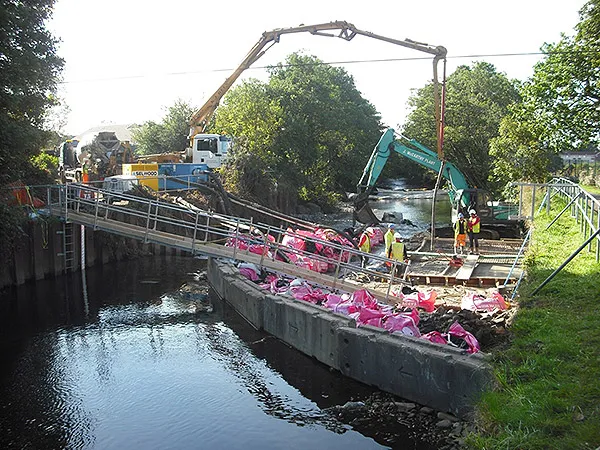

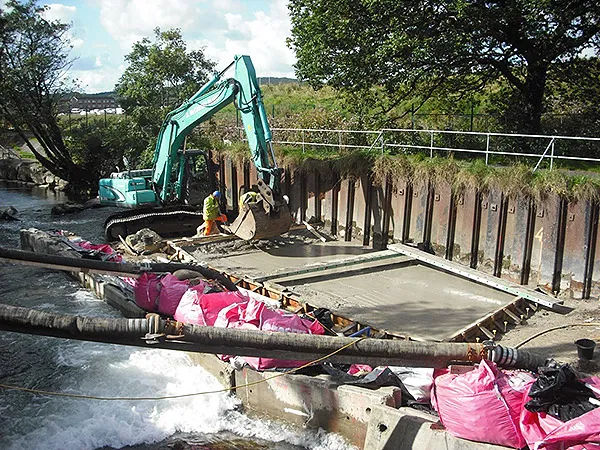

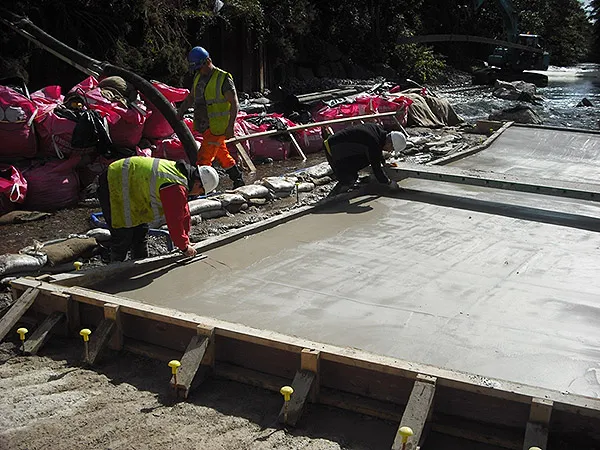

- Erect formwork and pour concrete to profiles and levels as required

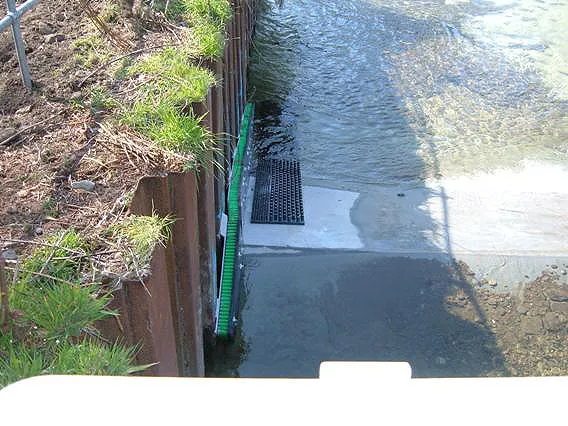

- Install Eel pass to outskirts of weir against existing sheet piles
| Client Organisation | Environment Agency |
| Main Contractor | Dyer & Butler |
| Main Contractor | McCarthy's |
| Principal Designer | Arup |
| Contract Period | 6 weeks |
